Name: Jupiter 6K
Brand: ELEGOO
Price: 827.99 EUR
Availability: OutOfStock

Jupiter 6K

Tom's Hardware Editor's Choice 2022

€1.196,00€827,99

Quantity

Free shipping

1 - Year warranty

Secured payment

Lifetime support

Product Description
Technical Specifications

【12.8-inch 6K Monochrome LCD】ELEGOO Jupiter features a 12.8-inch 6K monochrome LCD with a resolution of 5448x3064, allowing you to print models with intricate details and impressive print quality at 51-micron XY resolution, and fast layer curing speed up to 70 mm/h.

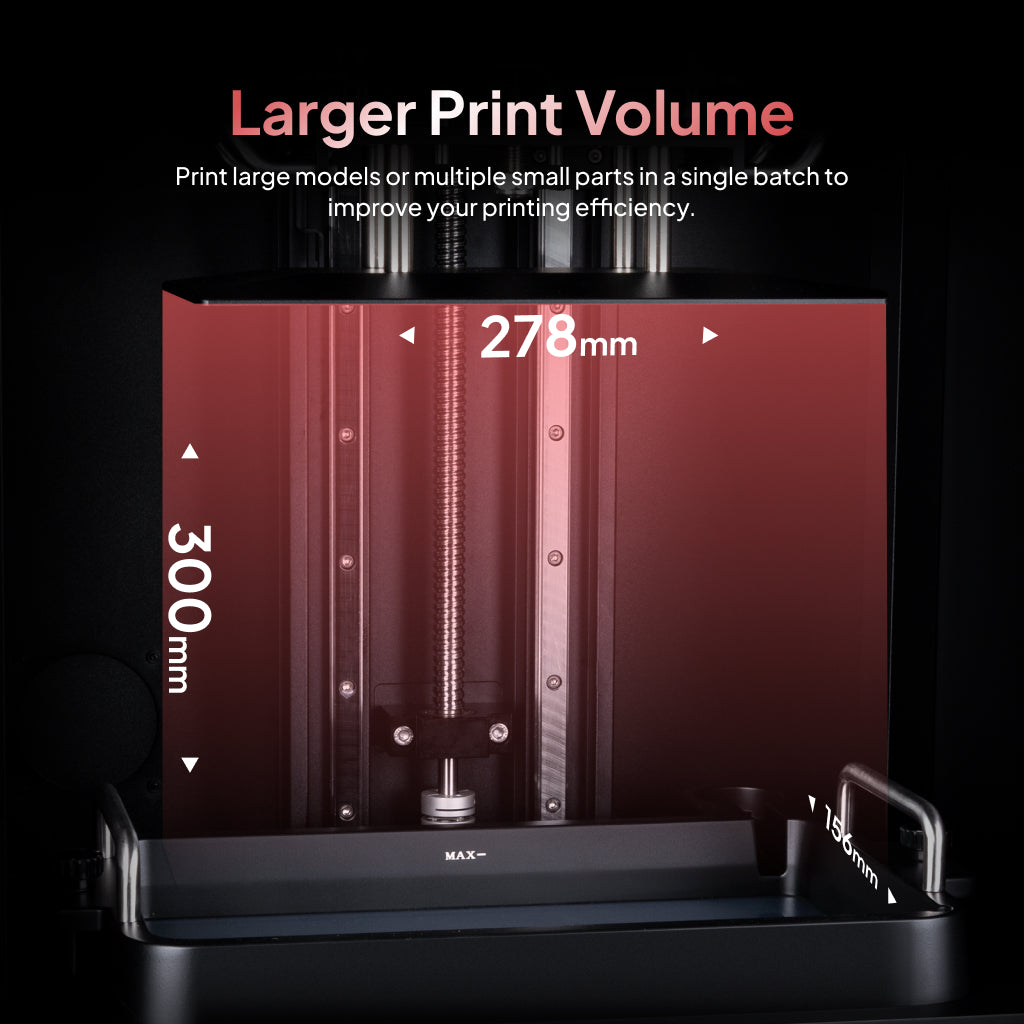

【Larger Print Volume】With a massive 277.848 x 156.264 x 300 mm build volume and a 286x166mm mask LCD, you can print large models or multiple small parts at once, or anything in between, greatly improving the model print output and efficiency, so it can also meet the printing requirements of commercial users.
【All-metal Structure】The printer body and main components are made of high-strength sheet metal, which is resistant to aging and scratches. The Z-axis adopts a ball screw with four sliders for more smooth and quiet movement, effectively increasing Z-axis stability and reducing Z-axis wobble during printing.
【Automatic Resin Feeding】Jupiter comes with a unique screw-on resin bottle cap, which allows you to install the resin bottle upside down behind the resin tank that has a resin feeding inlet, and when the resin in the tank is too low, the resin is automatically fed through the resin tank inlet. No more worry about running out of resin mid-print as the automatic resin feeder system will continuously add resin from resin bottle whenever needed during the printing process.
【5-inch Capacitive Touchscreen】The 5-inch capacitive touchscreen with a simple UI interface and clear display is highly responsive and straightforward to operate, with no delay or lag, and supports multi-language switching at will.
【Better Printing Experience】The plug-in air purifier with built-in activated carbon filter can effectively absorb and filter resin odor during the printing process, giving you a fresh and safe printing experience. The built-in LED strip will automatically light up when you open the door; the beam is uniform and soft, non-UV light won't cure resin, and you can use the printer normally even if the room is poorly lit.

ELEGOO Jupier 3D printer comes with 1-year free trial of CHITUBOX Pro Slicer

Large Model Printing

Made Easier

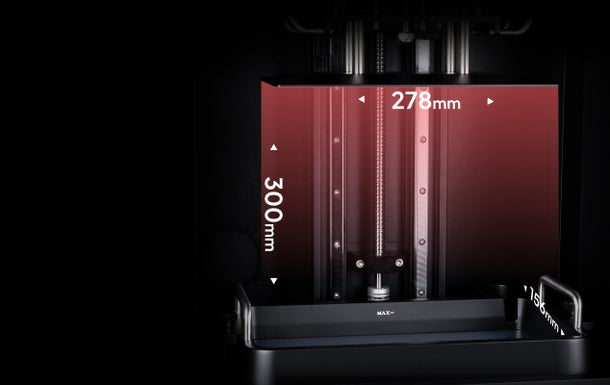

Massive Build Volume of 277.85 x 156.26 x 300MM

Printing Outputs

Maximized

You can now print multiple small/medium-sized models at once

Explore More Projects with Jupiter

Technology: mSLA
Operation: 5.0 Inch Capacitive Screen
Connectivity: USB
Layer Thickness: 0.01-0.2mm
Printing Speed: 30-70mm/h
Z Axis Accuracy: 0.00125mm
XY Resolution: 0.051mm(5448*3064)
Build Volume:

10.939in(L)*6.144in(W)*11.811in(H)

277.848mm(L)*156.06mm(W)*300mm(H)

Light Source:
UV Integrated Light (wavelength 405nm)
Power Requirements: 100-240V 50/60Hz
Printer Dimensions:

498mm (L)*358mm (W)*750mm (H)

Weight: 40kg
