Arduino Kits

Description

• ELEGOO Smart Robot Car: An educational kit based on Arduino platform for beginners (kids) to get hands-on experience about programming, electronics assembling and robotics knowledge. It is an integration solution for robotics learning and made for education for Arduino.
• Complete Package: Contains 24 kinds of module parts including obstacle avoidance, line tracking module, infrared remote control and also you can control it via phone and tablets of Android and iOS system, etc.
• Easy to Assemble: All the module interface has been modified with XH2.54 ports as to make it much easier and convenient to assemble the car and reduce the chances for errors.
• Refined Tutorial in CD: HD rendering instructions on how to assemble the robot car from scratch and all the necessary programs and codes are included. You can also download the same tutorials online
• Upgraded Package Design: More minimalism design and make it a perfect gift for your kids and friends. Note：(Applicable Age: 13+)To use Elegoo starter kits requires basic electronic knowledge. If the user has no experience, it would be better to have someone lead and teach them while studying.

How to Play:

Assembly Instruction:

Description

• Free PDF tutorial(more than 22 lessons) and clear listing in a nice package
• The most economical kit based on Arduino platform to starting programming for those beginners who are interested.
• Lcd1602 module with pin header (not need to be soldered by yourself)

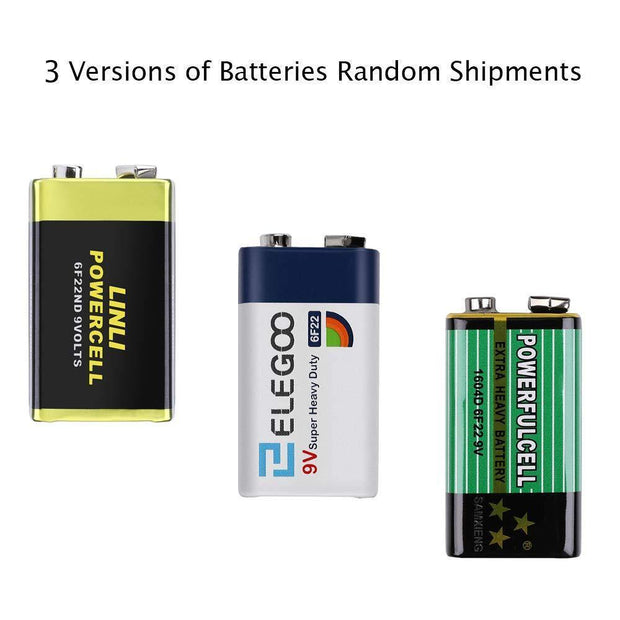

• This is the upgraded starter kits with power supply module, 9V battery with dc
• High-quality kite with UNO R3. 100% compatible with Arduino UNO R3, MEGA 2560 R3, NANO.



Compatibility with Official Arduino IDE, Software, Sensors and Codes

Arduino is an open-source platform used for building electronics projects. Arduino consists of both a physical programmable circuit board (often referred to as a microcontroller) and a piece of software, or IDE (Integrated Development Environment) that runs on your computer, used to write and upload computer code to the physical board.

For the reason of open source, the manufacture of Arduino boards and software distribution by anyone is permitted. Arduino boards are available commercially in preassembled form, or as do-it-yourself (DIY) kits.

Elegoo is one of the manufacturers on the market, whose clone products are compatible with the official Arduino microcontroller boards, they can use the official Arduino software, sensors, and codes.



​Learn Electronics and Programming with ELEGOO

The UNO boards can be used as the brains behind almost any electronics project. UNO can interact with buttons, LEDs, motors, speakers, GPS units, cameras, the internet, and even your smart-phone or your TV! By connecting the UNO board with a personal computer via a USB cable and uploading programs to the board, users can create digital devices and interactive objects that can sense and control objects in the physical and digital world like robots or even honest fortune-telling machines.

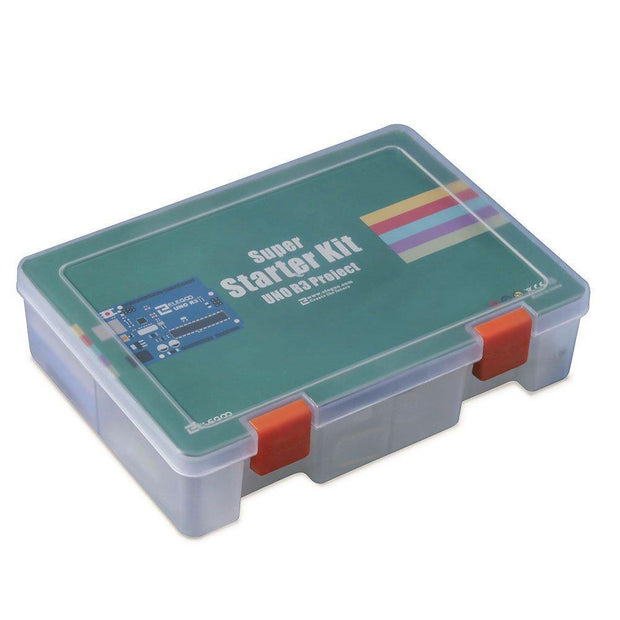

For this Elegoo Super Starter Kit, we provide a 24-lesson tutorial, introducing the basic setting of the software IDE, the working principles of the sensors and the simple program to enable the UNO board to control the sensors.

This Kit is suitable for 10-year-old and up. Younger kids should be under supervision and guidance of adults.

Description

• The cheapest and most basic electronic components kit for Arduino beginner
• Free PDF tutorial including project introduction and code will be provided, you can save a lot of time searching for them.
• With the newest UNO R3 development board + USB Cable and all the basic components.
• Nice package in the box with clear listing and CD.
• 100% compatible with Arduino UNO R3, MEGA 2560 R3, NANO, Arduino kit.

Established in 2011, ELEGOO is a thriving technology company dedicated to open-source hardware research & development, production, and marketing.

Our own Quality Management Team will secure the premium quality of our products and we would like to receive your valuable suggestions for our products and make your idea come true.

Description

• The MEGA2560 complete starter kit with more than 200pcs components, premium quality and 100% Compatible with Arduino IDE
• Free pdf tutorial in the cd (more than 35 lessons)
• Lcd1602 module and gy-521 sensor module with pin header ( no need to solder by yourself)
• Nice package with clear listing and surprise including a nice small box to keep the widget such as LED, IC, buttons, diodes, etc.
• We have always cared about the customer experience and improve the product function details



Starter kit that everyone can use to learn electronics and programming

Electronics is not as complicated as you imagine especially with Elegoo MEGA 2560 Starter Kit. For advanced users like professional lab engineers, electronic major students and experienced hobbyists for Arduino projects, they can use this kit to do various kinds of tests and experiments with so many sensors available at hand.

What about novice users who don't have any electronics knowledge? Fear not amigo. Just follow our tutorial enclosed and step by step you will come to realize that learning electronics is more fun than you ever expected with this amazing sensor kit.

It’s a good choice and perfect gift for your friends, family or kids who are obsessed with electronics, programming or robotics to take their first steps on electronics journey!



The most complete starter Kit with high-quality components and sensors

Quantity and quality are both important here in Elegoo MEGA 2560 starter kit. The most essential parts in this kit are MEGA 2560 controller board and expansion board, which is a perfect clone with an excellent product finish for Arduino projects. Besides, we offer other over 60 kinds of components and sensors from small parts like LED diodes, resistors and potentiometer to big parts like LCD1602, RFID module and 830 tie-points breadboard, which meet your demands for your different projects either it is simple or complex.

Sturdy quality is definitely the most important thing to Elegoo even with so many components provided we never compromised on the quality. Instead we keep improving our product quality in our own factory and we produce the products by ourselves under high standards and strict quality control. Pins and wires on some of the parts like LCD16502 and motors have been pre-soldered which is very convenient and saves your time.

Description

• NEW IMPROVEMENT: Clear prints on the female header connector, more precise and easier to use the wire.
• The ELEGOO UNO R3 BOARD now uses an ATMega16U2 instead of the ATMega8U2 chip. Faster transfer rates and more memory.
• Control using ATMEL ATMEGA328P chip(the same with Arduino UNO R3)
• 100% compatible with the Arduino IDE and RoHS Compliant
• We have always cared about the customer experience and improve the product function details.

----The RX and TX LEDs on the board will flash when data is being transmitted via the USB-to-serial chip and USB connection to the computer.

----The ELEGOO UNO R3 puts SDA and SCL pins beside the AREF. Besides, there are two new pins placed near the RESET pin. One is the IOREF that allows the shields to adapt to the voltage provided from the board and the other one is reserved for future purposes. The ELEGOO UNO R3 works with all existing shields and can adapt to new shields that use these additional pins.

Features

* ATmega328P microcontroller

* Input voltage - 7-12V

* 5V Electric current: 500MA

* 3.3V Electric current: 50MA

* 14 Digital I/O Pins (6 PWM outputs)

* 8 Analog Inputs

* 32k Flash Memory

* 16Mhz Clock Speed

Component listing

1pcs ELEGOO UNO R3 Development Board

1 pcs USB cable

It uses the same ATmega328 as the official Arduino UNO R3 board. The ATmega328 on the UNO R3 comes preprogrammed with a bootloader that allows you to upload new code to it without the use of an external hardware programmer.

The ATmega328 has 32 KB (with 0.5 KB occupied by the bootloader). It also has 2 KB of SRAM and 1 KB of EEPROM (which can be read and written with the EEPROM library).

It uses the same ATmega16U2 as the official Arduino UNO R3. The ATmega16U2 firmware source code is available in the official repository. The ATmega16U2/8U2 is loaded with a DFU bootloader, which can be activated.

The ELEGOO UNO R3 board can be powered via the USB connection.	The ELEGOO UNO R3 board can be powered with an external power supply.	Excellent welding and production quality to make sure satisfied customer experience	Clearly printed pin names on the header connector, more precise and much easier to use the wires.

Description

• The Mega is 100% compatible with Arduino IDE and most of the shields are designed for the Arduino mega2560 R3，RoHS Compliant
• The chip is Atmega2560-16au and Atmega16u2, same with the official version.
• Improved and expert version: 1. 0 pinout: added SDA and SCL pins that are near to the AREF pin
• Stronger RESET circuit. Use 5. 5 * 2. 1mm DC barrel jack (compatible with 5. 5 * 2. 5mm DC barrel jack)
• It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Diverse Power Methods:

The Elegoo Mega 2560 R3 can be powered via the USB connection or with an external power supply. The power source is selected automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board's power jack. Leads from a battery can be inserted in the GND and Vin pin headers of the POWER connector.

Technical Specification:

Microcontroller: ATmega2560

Controller chip: Atmega2560-16au and Atmega16u2

Operating Voltage: 5V ; Input: Voltage (recommended):7-9V

Digital I/O Pins: 54 (of which 15 provide PWM output)

Analog Input Pins: 16 DC

Current per I/O Pin: 40 mA ; DC Current for 3.3V Pin: 50 mA

Flash Memory: 256 KB of which 8 KB used by bootloader

SRAM: 8 KB EEPROM: 4 KB Clock Speed: 16 MHz LED_BUILTIN: 13

Length: 101.5 mm Width: 53.3 mm Weight: 34 g

Description

• The Nano is using the chips ATmega328P and CH340, not FT232 as official Arduino, so pls. use the driver from the above link.
• It is the smallest, complete, and breadboard-friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.
• Nano's got the breadboard-ability of the Boarduino and the Mini+USB with a smaller footprint than either, so users have more breadboard space. It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other).
• The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected for the highest voltage source.

Elegoo Nano Board

Nice Boards, Nice Cost

Windows driver installation is easy.

Power consumption is low.

The header pins haven't been soldered.

Input and Output

Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. Some pins have specialized functions:
Serial: 0 (RX) and 1 (TX). Used to receive (RX) and transmit (TX) TTL serial data. These pins are connected to the corresponding pins of the CH340G USB chip.

Classic LED Project with Nano Board

This example project shows the simplest thing you can do with an Elegoo Nano to see physical output: it blinks the on-board LED just like the star in the sky.

Hardware needed for this project:
1 x Nano Board
1 x Mini USB Cable
1 x Breadboard
2 x Wires

The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the official Arduino/Genuino UNO, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.



ATTENTION: We don't have USB cables in this kit and you will need to buy a mini USB cable to use this NANO board.

Technical specs:

• Microcontroller: ATmega328;Architecture: AVR
• Operating Voltage: 5 V;
• Flash Memory: 32 KB of which 2 KB used by bootloader
• SRAM: 2 KB; EEPROM: 1 KB
• Clock Speed: 16 MHz; Analog I/O Pins: 8
• DC Current per I/O Pins: 40 mA (I/O Pins)
• Input Voltage: 7-12 V; Power Consumption: 19 mA
• PWM Output: 6; Digital I/O Pins: 22
• Package Include : 3 X Nano Board
• PCB Size: 18 x 45 mm
• Weight: 7 g

Description

• White ABS plastic body with a black printed legend. Color legend on distribution strips

• With self-adhesive tape on the back, make it easy to stick on the Arduino prototype shield

• Great packing in a paper box

• We have always cared about the customer experience and improve the product function details

Description

• Each cable length: about 20 cm /8-inch
• The cables can be separated to form an assembly containing the number of wires you require for your connection and to support non-standard odd-spaced headers
• Including 1X 40-pin male to female jumper wires, 1X 40-pin male to male jumper wires, 1x40-pin female to female jumper wires
• Packing in a color box.
• We have always cared about the customer experience and improve the product function details

	Product Features Material: copper-clad aluminum, PVC Each cable length: about 20 cm /8-inches The male ends meant for insertion into standard 0.1"(2.54mm) female sockets and the female ends are meant for insertion into standard 0.1"(2.54mm) male headers. The cables can be separated into a single root as you request to do multiple connections.
	What's in Package 1pcs 40-pin male to female jumper wires 1pcs 40-pin male to male jumper wires 1pcs 40-pin female to female jumper wires
	What are they used for? Widely used in electronic projects for connections. It can be used for the expansion of the experimental board pin and increase experimental projects. You can quickly conduct circuit testing without welding. It can be reused if the terminal is not damaged.
	Professional and in-time after-sale service We have a professional engineering supporting team, pls. reach us if you need any help and we'll do our best to give you a great experience with our products and service. Any comment will be highly regarded.

Description

• 32 pieces double-sided PCB prototype boards well packed in a plastic tray which is very easy to store and take out
• 5 different size boards to meet your demands when designing your own Arduino kits, electronic experiments, and DIY projects
• 4 mounting holes at the corners of the board are very convenient for installing them together.
• Pre-tinned plated holes on the board make it very handy to solder components and sensors for your projects
• High quality of durable glass fiber –FR4 material with 1.6mm thickness makes a very solid and sturdy prototype circuit board

Come to meet Elegoo Double-Sided Porotype Board which is widely used among electronic experiments and point-to-point DIY soldering projects. With the perfect designed pre-tined holes on the board, you can easily install any sensors and components you need. The high quality of glass fiber material and the great durability of the board can always meet your requirements in various situations.

Elegoo Double-Sided Prototype Board Product Specification: Dimension: 4x6/ 3x7/ 5x7/ 2x8/ 7x9 CM Quantity: 32 pieces in total of 5 different sizes Thickness: about 1.6mm Material: Great quality of glass fiber FR4 Color: Green basic, silver tone Hole-pitch: 2.54 mm/ 0.1 inches Hole-diameter: 1 mm/ 0.04 inches

Essential Boards for Your Project

With the excellent quality of glass-fiber material, ELEGOO double-sided prototype board kit is a great and essential tool for hobbyists and pros to build up their own electronic projects.

Selection of Multi-Sized Proto Boards 32 pieces double-sided prototype boards of 5 different sizes to meet your demands when designing your own Arduino kits, electronic experiments, and DIY projects.	Solid Quality and Great Value High quality of durable glass fiber -FR4 material with 1.6mm thickness makes a very solid and sturdy prototype circuit board.	Pre-tinned Holes for Handy Soldering Pre-tinned plated holes on the board make it very handy to solder components and sensors for your projects.	Compact and Elegant Packaging ELEGOO double-sided perf board comes with an elegant package that contains all the 32 pcs boards in a plastic tray for easy storage.
